Cold Room
You Professional Cold Room Manufacturers
Jinan Mgreenbelt Machinery Co., Ltd. are core enterprises of MGREENBELT compressed air system products and services chain. We specialize in producing High Pressure Oil Free Compressor, Oil Free Air Compressor, Medium Pressure Screw Air Compressor, Screw Type Air Compressor, PET High Pressure Air Compressor, and other Air Compressor.
Why Choose Us
Our Factory
Our company has more than 5,000 square meters of production plants and more than 200 employees engaged in product production, research and development and after-sales service.
Advanced Equipment
You can choose Megbet with confidence Provide reliable and technologically advanced screw air compressors, complete sets of post-treatment equipment (air compressors, dryers, filters, air storage tanks), as well as matching consumables and spare parts.
OEM & ODM Capabilities
We offer customized services, tailoring products to your specific requirements. capacity to ensure in time delivery and transport to the destination in the first time.

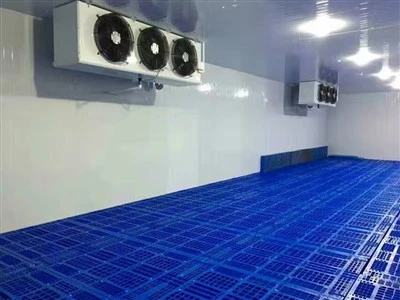

Industrial Cold Storage
Industrial cold storage facilities are specialized warehouses designed to store goods at specific low temperatures to ensure the quality and safety of perishable items. These are integral to industries that handle products requiring temperature-controlled environments, such as food and beverages, pharmaceuticals, and chemicals.

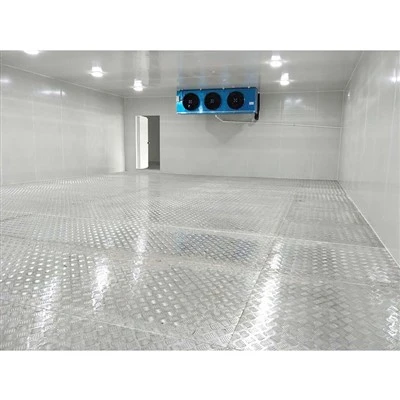

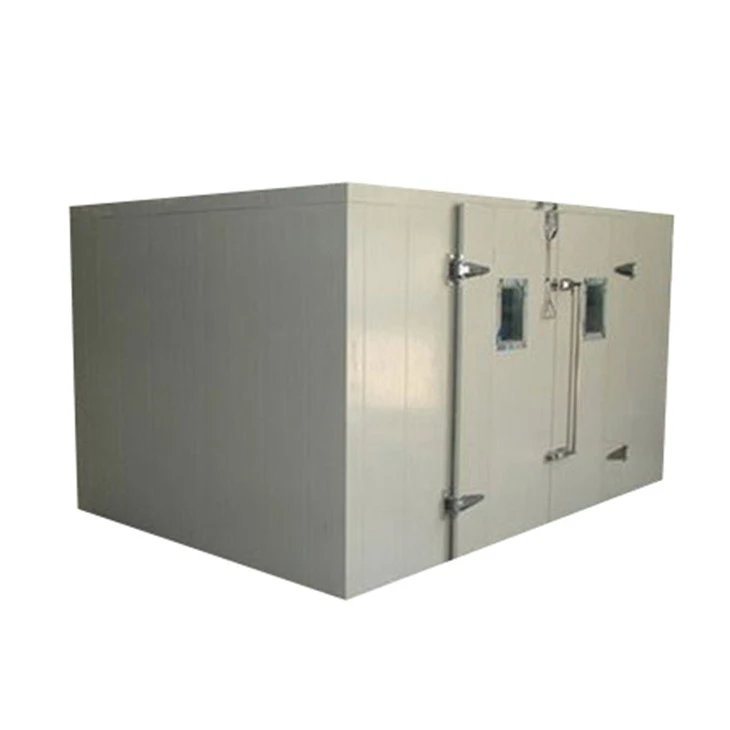

Commercial Cold Room Storage
Commercial Cold Room Storage, is a type of cold room specifically designed for the large capacity foods storage. The goal is to create an suitable environment that helps the shelf life of vegetable / fruit / meats / etc foods by maintaining optimal temperature. Different foods have varying temperature requirements, so for vegetable and fruit keeping, 0~15C room temperature is a suitable temperature to keep; for frozen meat, seafoods, fish, will need -18C room temperature at least.

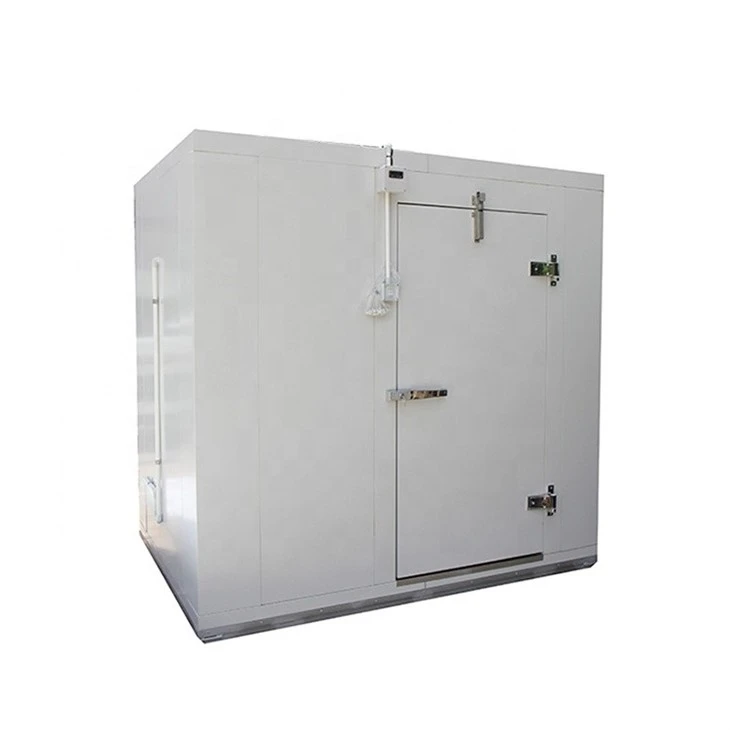

Walk Ins Cold Room
Small cold room is is the widely used professional cold room to storage Food/ Beer / Fruit and toiletries. It is used for restaurants, supermarkets, shopping malls.

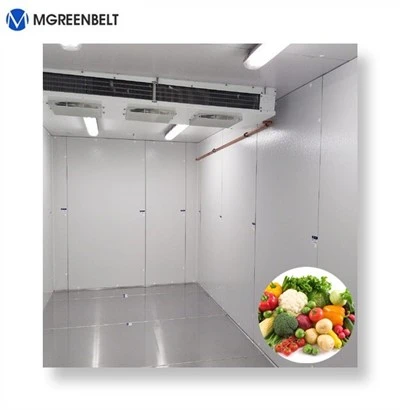

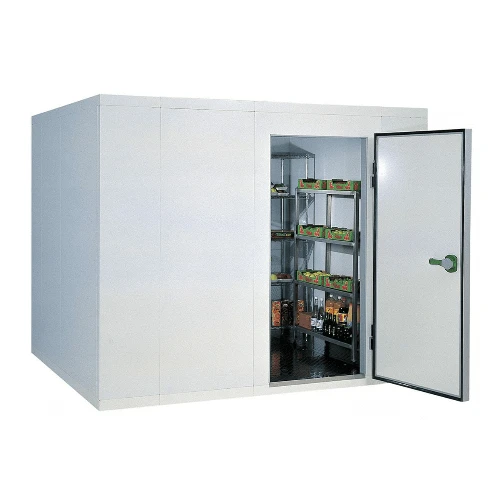

Walking Chiller Room In Positive Temperature
Medium Temperature Cold Room Storage For Fruits, is a type of cold storage facility specifically designed for the storage of fruits. The goal is to create an environment that helps extend the shelf life of vegetable by maintaining optimal temperature and humidity levels. Different fruits have varying temperature and humidity requirements, so a vegetable cold room is often designed to accommodate these specific needs.
Advantages of Cold Room
Extended shelf life of products — Cold rooms provide precise temperature control, which is essential for preserving the quality of perishable goods. By maintaining the right temperature, these rooms can keep food, drugs, and other products fresh for longer periods of time, reducing spoilage and waste.
Increased storage capacity — Cold rooms are designed to maximize storage capacity, allowing businesses to store large quantities of products in a single location. This can help businesses save on storage costs and make it easier to manage inventory.
Better product quality — Cold rooms provide a stable environment for products, ensuring that they maintain their quality and freshness.
Compliance with regulations — Many industries have strict regulations on the storage of perishable items. Industrial cold rooms help businesses comply with these regulations and avoid costly fines.
Energy efficiency — Modern industrial cold rooms are designed with energy efficiency in mind, which can help businesses save on energy costs. By using advanced insulation materials, efficient cooling systems, and other energy-saving features, businesses can minimize their environmental impact while also saving money.
Hygiene and safety — Industrial cold rooms are designed to meet stringent hygiene and safety standards, which is essential for businesses that deal with perishable goods. They are equipped with features such as easy-to-clean surfaces, anti-bacterial coatings, and temperature alarms to help maintain a hygienic environment and ensure that products are kept at the right temperature.
Small sized cold rooms, up to 30 m3, for use in catering and local shops, butchers, fishmongers, ice cream shops…
Medium sized cold rooms up to 200 m3, used in supermarkets, cold rooms, hotels, pharmaceutical laboratories, …
Large industrial cold rooms up to 3000 m3. These chambers are located in large logistics centres or auctions.
Determining the cold room size depends on the type, quantity and storage time of the products to be stored. The volume of the products to be stored should be planned in such a way that there is no space in the cold room. In this way, unnecessary space in the cold room and energy loss are prevented. In addition, sufficient space should be left for the products to be stored in the cold room to be easily accessed.
Material of Cold Room

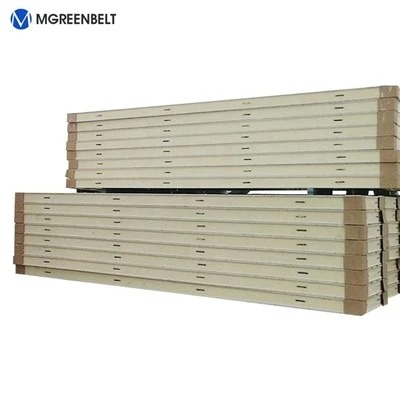

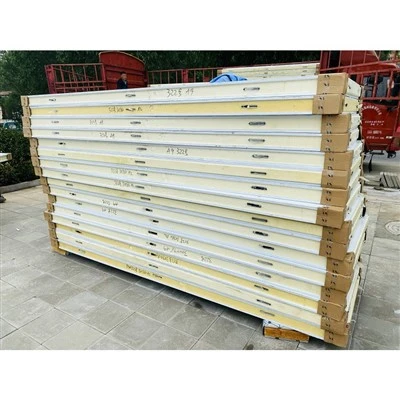

Insulated Panels
Insulated panels are a popular choice for cold room construction due to their excellent thermal properties. These panels are usually composed of a core material, such as polyurethane foam or polystyrene, sandwiched between two layers of metal or other sturdy materials. The insulation in these panels helps maintain a consistent and controlled temperature within the cold room, minimizing temperature fluctuations and reducing energy consumption.
Stainless Steel
Stainless steel is widely used for the interior surfaces of cold rooms due to its hygienic properties and resistance to corrosion. It is easy to clean and maintain, making it suitable for storing food, pharmaceuticals, and other sensitive goods that require strict hygiene standards. Stainless steel surfaces also offer excellent durability and longevity, ensuring that the cold room remains in optimal condition for extended periods.
High-Density Polyethylene (HDPE)
HDPE is a durable and moisture-resistant plastic material commonly used for the construction of cold room floors and ceilings. It provides a smooth and impermeable surface that is resistant to water and chemical damage, preventing moisture from seeping into the cold room and compromising the stored goods.
Vapor Barrier Films
Vapor barrier films are essential for cold room walls and ceilings to prevent the infiltration of moisture and condensation. These films act as a barrier, reducing the risk of mold growth and maintaining the integrity of the cold room's insulation. When combined with insulated panels, vapor barrier films enhance the cold room's thermal efficiency and overall performance.
Thermal Doors
Cold room doors play a crucial role in maintaining temperature integrity and preventing heat ingress. Opt for thermal doors with proper insulation to minimize temperature fluctuations and reduce energy losses. The doors should have a reliable sealing mechanism to ensure an airtight closure, keeping the cold air inside and preventing warm air from entering.
Antimicrobial Coatings
Applying antimicrobial coatings to the interior surfaces of the cold room can help prevent bacterial growth and maintain a hygienic environment. These coatings inhibit the growth of microorganisms, reducing the risk of contamination and ensuring the safety of stored goods.
LED Lighting
When it comes to lighting within the cold room, LED lights are the preferred choice. LED lights produce minimal heat and consume less energy, making them energy-efficient and less likely to impact the cold room's temperature. They also provide consistent and bright illumination, ensuring visibility and ease of operation within the cold storage facility.
Basic Requirements For Cold Storage Installation
1. The cold storage is installed in a solid and stable place.
2. Cold storage is installed in a place with good ventilation and low humidity, and cold storage is installed in a shed away from light and rain.
3. The drainage in the cold storage is discharged through the drain pipe. Water will drain frequently, so direct the drain to a place where it can flow freely.
4. The installation of combined cold storage requires a horizontal concrete base. When the ground is tilted and uneven, the base must be repaired and leveled.
5. The partition wall panels of the combined cold storage shall be fixed with partition wall angle steel.
6. After the combined cold storage body is installed, check the fit of the joints of the boards. If necessary, the inside and outside should be filled with silica gel to seal.
7. The combined cold storage is used inside the house. When it is installed outside the house, it is necessary to install a cover to block the sun and rain.
8. Do not install U-shaped pipes on the drain pipes, which may sometimes lead to corrosion of the unit.
9. The cold storage is in a hot place, not only the cooling efficiency will decrease, but sometimes the storage board will be damaged. In addition, the ambient temperature range ensures the normal operation of the unit is within 35 degrees. Also, leave room for maintenance of the unit.
10. Pay attention to sticking the sponge tape completely on the convex edge of the storage board when assembling the board, and do not collide when installing the cold storage board. Sponge tape sticking position.
11. U-shaped pipes must be installed on the drain pipes. Installing U-shaped pipes can prevent air-conditioning leakage, insects, and mice from invading.
12. Due to the wide variety of storage boards in cold storage, you should refer to the "Assembly Diagram of the Cold Storage" when installing movable cold storage.
13. When tightening the hook, apply force slowly and evenly until the seam of the board is closed. Do not use excessive force to prevent the hook box from being pulled out.
14. Cold storage should be kept away from heating appliances.
15. After the pipeline and electrical installation are completed, all pipeline perforations on the combined cold storage board must be sealed with waterproof silicone.
16.After the cold storage is installed, sometimes condensation will appear before the concrete base is completely dry. When the humidity is abnormally high during the rainy season, dew condensation will appear on the joints of the warehouse boards, and in very small cases, condensation will also appear on the repaired warehouse boards.
